3 preventive designs extend mold life by 5 years

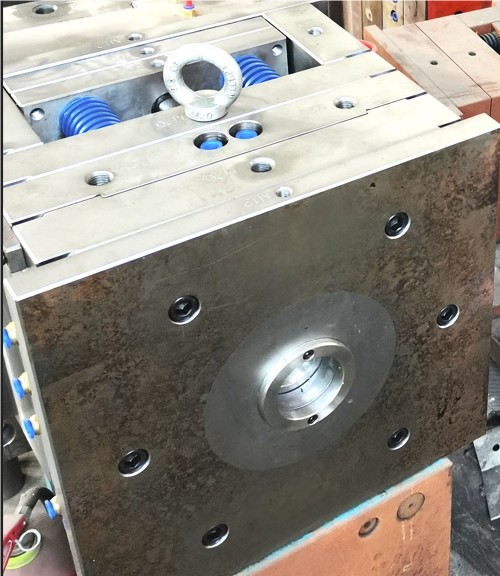

The cost of mold maintenance has soared, becoming the "invisible killer" of the manufacturing industry. According to the "Mold Industry Development Report", mold maintenance costs have accounted for 12%-18% of the total production cost of enterprises, and continue to rise at an annual growth rate of 5%. As the "mother machine" of industrial production, the life of the mold directly determines the production efficiency and cost control capabilities. This article deeply analyzes three preventive design strategies to help you increase the life of the mold by more than 5 years and reduce the cost of the entire life cycle by 30%.

The Truth Behind the Cost Surge: 4 core Pain Points

1. Fluctuation in raw material prices: mold steel prices have risen 57% in 3 years. Taking NAK80 mold steel as an example, the average market price was 42 yuan/kg in 2020, and it soared to 66 yuan/kg in 2023, directly pushing up the initial manufacturing cost of the mold.

The true cost of a stamping die or injection mold goes far beyond its initial purchase price. When a mold fails prematurely, it triggers a cascade of hidden expenses that can cripple profitability. Think about it: emergency repairs, often at premium rates, lead to unexpected downtime, halting production lines and delaying delivery schedules. This directly impacts customer satisfaction and can even result in lost contracts. Then there are the labor costs associated with troubleshooting, dismantling, repairing, and reassembling the mold – valuable skilled labor diverted from productive tasks. Furthermore, the scrap material generated during trial runs and initial production after a repair adds to the financial burden.

A proactive approach, embedded in preventive design, directly addresses these cost surges. By designing for durability from the outset, we significantly reduce the likelihood of costly reactive interventions. This means fewer emergency repairs, less unplanned downtime, and a more predictable production schedule. For instance, incorporating features like standardized, easily replaceable wear components, designing for optimal material flow to prevent localized stress points, and specifying higher-grade tool steels can dramatically extend the useful life of a mold, thereby reducing these hidden and often devastating cost surges. Imagine a scenario where your agriculture machinery components, auto parts, or appliance casings are consistently produced without interruption, minimizing the financial drain of unforeseen mold failures. This financial predictability allows for better budget allocation and ultimately, higher profit margins.

2 Maintenance black hole: 1 downtime = 3 times explicit loss Direct maintenance cost: average single maintenance cost 8000-30,000yuan Downtime loss: based on a 2000T injection molding machine, the loss of 1 hour of downtime is about 5,000yuan Quality risk: Dimensional stability decreases after maintenance, and the defect rate may increase by 2-5%

3 Design defects: 70% of mold problems originate from the design stage. A mold industry research shows that the three major problems of unreasonable pouring system design, incorrect cooling pipe layout, and insufficient structural strength lead to 68% of premature mold failure.

4 Iteration acceleration: The life of new energy vehicle molds is required to be increased by 3 times. The life of traditional automobile bumper molds is about 500,000 times, while the integrated die-casting molds for new energy vehicles need to reach more than 1.5 million times, which poses new challenges to the design.

3 preventive design strategies: extending life from the source

1 Mold flow analysis pre-process: Original solution: 8 mold trials still failed to solve the weld line problem; After optimization: Moldflow simulation analysis was used to predict flow defects in advance. The traditional trapezoidal runner was changed to a parabolic gradient runner. The number of gates was optimized from 6 to 4. Results: The number of mold trials was reduced to 2, and the mold life was increased from 300,000 times to 450,000 times. Key technical points: The melt front speed was controlled at 200-400mm/s. The shear rate did not exceed 40,000 1/s. The pressure loss was controlled within 35% of the initial pressure.

2. Upgrade of materials and heat treatment process: Golden formula for selecting matrix materials of surface strengthening technology: Matrix hardness (HRC) ≥ Mold stress (MPa) × 0.03, (e.g.: A mobile phone shell mold withstands the stress of 800MPa, and material with HRC ≥ 24 needs to be selected)

3 Structural design redundancy: Stress dispersion topology optimization innovative design method: Load path visualization: Through ANSYS topology optimization, the optimal reinforcement layout is automatically generated; variable wall thickness design: the wall thickness of the core area is increased by 20%, and the non-load-bearing area is reduced by 15%; modular design: the vulnerable parts are designed as detachable modules, and the maintenance time is shortened by 70%.

Case: Original structure: integral core, which needs to be replaced as a whole after cracking; After optimization: HSK quick-change interface + split inserts are used; Results: The replacement cost of a single insert is reduced by 92%, and the overall life of the mold is extended to 650,000 times.

A robust preventive design strategy isn't merely an afterthought; it's an integrated philosophy that permeates every stage of mold development, from initial concept to final production. It’s about building resilience into the very DNA of your stamping dies and injection molds. This begins with material selection, choosing tool steels and coatings that offer superior wear resistance, toughness, and thermal stability, tailored to the specific application. For high-volume auto parts or demanding agriculture machinery components, investing in premium materials upfront pays dividends in extended mold life and reduced maintenance.

Next, design for manufacturability (DFM) plays a crucial role. This involves designing mold components that are not only efficient in production but also easy to maintain, repair, and replace. Think about designing for modularity, where individual sections of the mold can be serviced or replaced without dismantling the entire structure. This minimizes repair time and cost. Furthermore, stress analysis and simulation during the design phase can identify potential weak points and areas of high-stress concentration, allowing for design modifications to prevent premature fatigue and cracking. For instance, in an injection mold for appliance parts, optimizing gate locations and runner systems can prevent hot spots and uneven cooling, which can lead to part defects and mold wear. Similarly, for stamping dies, ensuring proper die clearances and material flow during the stamping process minimizes stress on cutting edges and forming surfaces. A strategic approach also considers the operational environment – whether it's the high-pressure demands of agriculture machinery parts or the intricate geometries of modern auto components. This foresight allows for the incorporation of features that will withstand the rigors of production, ensuring that your molds deliver consistent, high-quality output for years to come.

Three steps to build a preventive design system

1. Digital design platform construction and configuration of Moldflow/AnyCasting mold flow analysis software; establish a material database (including 300+ mold steel performance parameters); develop intelligent design plug-ins (automatically generate reinforcement ribs/cooling water channels)

2. Design standard iteration converts failure cases into a list of 23 design taboos; formulate "Redundant Design Specifications for Key Components"; establish a modular parts library (including 500+ standard parts)

3. Cross-departmental collaboration mechanism Design/process/production departments hold DFMEA meetings every month; set up a mold health monitoring system (real-time collection of clamping force, temperature, and other data); establish a maintenance big data analysis platform (locate high-frequency fault points)

Moving beyond individual strategies, a comprehensive preventive design system integrates all aspects of mold management into a cohesive, data-driven framework. This system is the backbone of truly extended mold life. At its core is data collection and analysis. This means meticulously tracking mold performance metrics: cycles produced, repair history, wear patterns, and downtime incidents. This data provides invaluable insights into wear mechanisms, common failure modes, and areas ripe for improvement. For an auto parts manufacturer, analyzing data from multiple stamping dies producing similar components can reveal critical design flaws or operational practices that are accelerating wear.

Leveraging technologies like Internet of Things (IoT) sensors embedded within the molds themselves can provide real-time data on temperature, pressure, and vibration, offering early warning signs of potential issues. Imagine a sensor in an injection mold for an appliance component detecting a subtle temperature fluctuation that indicates impending wear on a core pin, allowing for proactive maintenance before a complete failure occurs. This real-time data can be fed into predictive analytics models that forecast remaining useful life and schedule maintenance proactively, rather than reactively. This moves beyond traditional "run-to-failure" maintenance to a truly optimized approach. The system also encompasses standardized maintenance protocols and employee training. Ensuring that your team understands the importance of proper mold care, lubrication, and inspection contributes significantly to longevity. Finally, a robust preventive design system fosters a culture of continuous improvement, where insights gained from data analysis are fed back into the design process, leading to even more durable and efficient molds in the future. For agriculture machinery, auto parts, and appliance manufacturers, this holistic system transforms mold management from a cost center into a strategic asset, ensuring that your production lines remain robust and your products consistently meet the highest standards, all while extending the life of your critical molds by an astonishing five years or more.
